Fairino

FR5-WML

FR5-WML

Delivery is 30 days

Price: $16,700.00
List Price:
Price: $16,700.00
View Cart

Payload
5 kg

Reach
1900 mm

Repeatability
±0.1 mm

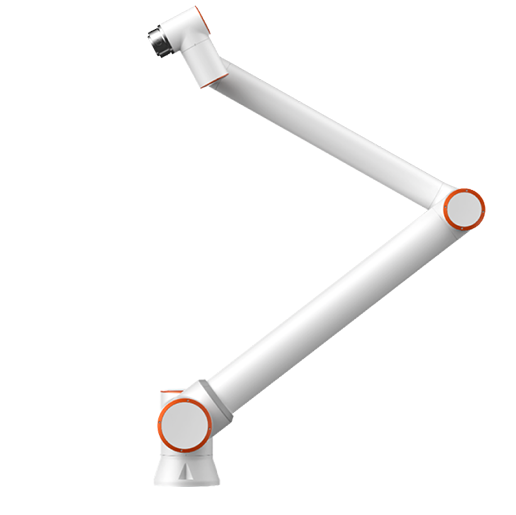

Meet the Fairino FR5 — a next-generation 6-axis collaborative robot (cobot) built for precision, safety, and rapid deployment. This compact robotic arm adds power with a 5 kg payload, making it ideal for robotic welding (Laser/MIG/TIG), CNC/machine tending, pick & place, light assembly, inspection, and packaging. With advanced human-robot collaboration, intuitive programming, a small footprint, and flexible mounting, the FR5 delivers reliable, scalable, and cost-effective automation for modern manufacturing line

Specifications

Payload 5 kg (Max: 7 kg)
Reach 1900 mm
Degrees of freedom 6 rotating joints
Pose repeatability per ISO 9283 ±0.1 mm
Typical TCP speed 2 m/s
Pendant (optional) 10.1 inch tablet
Robot Weight ≈45kg
Robot Material Aluminum, Steel



Axis movement

Base ±175° @ ±180°/s
Shoulder ﹢85°/﹣265° @ ±180°/s
Elbow ±160° @ ±180°/s
Wrist 1 +85°/﹣265° @ ±180°/s
Wrist 2 ±175° @ ±180°/s
Wrist 3 ±360° @ ±180°/s



Power - I/O Ports

Control Box I/O DI 16 DO 16 AI 2 AO 2 Encoder 2
Robot Arm I/O DI 2 DO 2 AI 1 AO 1 Encoder 2
Communication TCP/IP、Modbus_TCP/RTU, CC-Link、Profinet、Ethernet/IP、EtherCAT
Power Supply 24V/1.5A


Included:

  • Fairino FR5 Cobot
  • Control Box (AC or DC)
  • Safety Box
  • US Power Cable

Pendant is an optional extra

Flexible Programming

Fairino cobots offer a variety of programming methods for every user: an intuitive drag-and-drop web interface for easy operation with a teach pendant for quick adjustments, and support for advanced programming languages such as Python, C#, C++, ROS and ROS2 for complex applications.

Product Manuals
