Fairino
FR20
FR20
- Regular price
- Price: $21,750.00
- Regular price
- List Price:
- Sale price
- Price: $21,750.00
- Unit price
- per
Couldn't load pickup availability
PRODUCT DESCRIPTION
Payload
20 kg
Reach
1854 mm
Repeatability
±0.1 mm

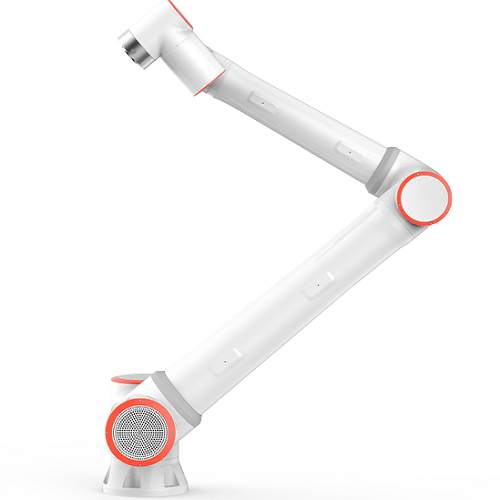

Fairino FR20 is a powerful, scalable, sustainable 6-axis collaborative robot built to empower the end users. Engineered to solve real automation solutions, the FR20 leverages our advanced intelligence and flexibility plus self-developed core components for unmatched versatility. Ideal for palletizing, large machine tending, heavy pick-and-place, as well as assembly, inspection, and packaging, the FR20 delivers reliable, high-throughput automation with a fairly compact footprint and fast deployment.
Engineered to be one of the most robust cobots on the market, the FR20 rivals equipment costing up to 5× more—without sacrificing performance. See how this six-axis, 20 kg-payload arm is transforming intelligent manufacturing with flexible, efficient, and collaborative automation that elevates productivity and innovation
Specifications
| Payload | 20 kg (Max: 25 kg) |
| Reach | 1854 mm |
| Degrees of freedom | 6 rotating joints |
| Pose repeatability per ISO 9283 | ±0.1mm |
| Typical TCP speed | 2 m/s |
| Pendant (optional) | 10.1 inch tablet |
| Robot Weight | ≈85kg |
| Robot Material | Aluminum, Steel |
Axis movement
| Base | ±175° @ ±120°/s |
| Shoulder | ﹢85°/﹣265° @ ±120°/s |
| Elbow | ±120° @ ±120°/s |
| Wrist 1 | +85°/﹣265° @ ±180°/s |
| Wrist 2 | ±175° @ ±180°/s |
| Wrist 3 | ±175° @ ±180°/s |
Power - I/O Ports
| Control Box I/O | DI 16 DO 16 AI 2 AO 2 Encoder 2 |
| Robot Arm I/O | DI 2 DO 2 AI 1 AO 1 Encoder 2 |
| Communication | TCP/IP、Modbus_TCP/RTU, CC-Link、Profinet、Ethernet/IP、EtherCAT |
| Power Supply | 24V/1.5A |
Included:
- Fairino FR20 Cobot
- Control Box (AC or DC)
- Safety Box
- US Power Cable
Pendant is an optional extra
Flexible Programming
Fairino cobots offer a variety of programming methods for every user: an intuitive drag-and-drop web interface for easy operation with a teach pendant for quick adjustments, and support for advanced programming languages such as Python, C#, C++, ROS and ROS2 for complex applications.
