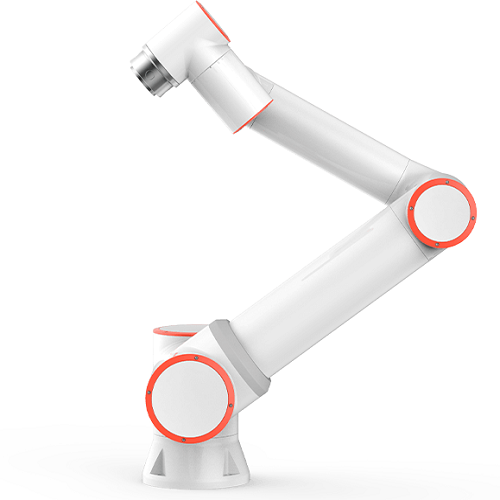

Fairino

FR16

FR16

Delivery is 30 days

Price: $16,500.00
List Price:
Price: $16,500.00
View Cart

Payload
16 kg

Reach
1034 mm

Repeatability
±0.03 mm

Fairino FR16 — a next-generation 6-axis collaborative robot (cobot) built for high-payload precision, safety, and rapid deployment. This robust yet compact arm delivers a 16 kg payload, making it ideal for palletizing, CNC/machine tending, heavy pick & place, screw driving, dispensing, sanding/deburring, assembly, inspection, and packaging. With advanced human-robot collaboration, intuitive programming, a small footprint, and flexible mounting, the FR16 brings reliable, scalable, and cost-effective automation to demanding manufacturing lines.

Designed to balance power with adaptability, the FR16 cobot delivers unmatched dedication, safety, and reliability, making it an ideal solution for industries that require heavy-duty automation. With advanced technology and a robust design, this high-performance collaborative robot handles intense workloads while maintaining the safety and flexibility needed for modern manufacturing

Specifications

Payload 16 kg (Max: 20 kg)
Reach 1034 mm
Degrees of freedom 6 rotating joints
Pose repeatability per ISO 9283 ±0.03mm
Typical TCP speed 2 m/s
Pendant (optional) 10.1 inch tablet
Robot Weight ≈45kg
Robot Material Aluminum, Steel



Axis movement

Base ±175° @ ±120°/s
Shoulder ﹢85°/﹣265° @ ±120°/s
Elbow ±160° @ ±120°/s
Wrist 1 +85°/﹣265° @ ±180°/s
Wrist 2 ±175° @ ±180°/s
Wrist 3 ±175° @ ±180°/s



Power - I/O Ports

Control Box I/O DI 16 DO 16 AI 2 AO 2 Encoder 2
Robot Arm I/O DI 2 DO 2 AI 1 AO 1 Encoder 2
Communication TCP/IP、Modbus_TCP/RTU, CC-Link、Profinet、Ethernet/IP、EtherCAT
Power Supply 24V/1.5A



Included:

  • Fairino FR16 Cobot
  • Control Box (AC or DC)
  • Safety Box
  • US Power Cable

Pendant is an optional extra

Flexible Programming

Fairino cobots offer a variety of programming methods for every user: an intuitive drag-and-drop web interface for easy operation with a teach pendant for quick adjustments, and support for advanced programming languages such as Python, C#, C++, ROS and ROS2 for complex applications.
