Fairino

FR10

FR10

Delivery is 30 days

Price: $14,500.00
List Price:
Price: $14,500.00
View Cart

Payload
10 kg

Reach
1400 mm

Repeatability
±0.05 mm

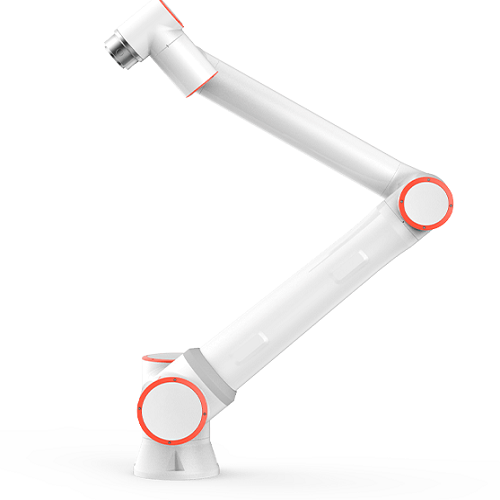

The Fairino FR10 collaborative robot (cobot) redefines industrial automation with a perfect balance of power, precision, and safety. This next-level 6-axis robotic arm is engineered for versatility — capable of handling demanding tasks like machine tending, welding, and material handling while maintaining the finesse needed for delicate assembly and inspection. With a 10 kg payload, high repeatability, and intuitive programming.

Specifications

Payload 10 kg (Max: 14 kg)
Reach 1400 mm
Degrees of freedom 6 rotating joints
Pose repeatability per ISO 9283 ±0.05mm
Typical TCP speed 1.5 m/s
Pendant (optional) 10.1 inch tablet
Robot Weight ≈40kg
Robot Material Aluminum, Steel



Axis movement

Base ±175° @ ±120°/s
Shoulder ﹢85°/﹣265° @ ±120°/s
Elbow ±160° @ ±180°/s
Wrist 1 +85°/﹣265° @ ±180°/s
Wrist 2 ±175° @ ±180°/s
Wrist 3 ±175°(Optional ±360°) @ ±180°/s



Power - I/O Ports

Control Box I/O DI 16 DO 16 AI 2 AO 2 Encoder 2
Robot Arm I/O DI 16 DO 16 AI 2 AO 2 Encoder 2
Communication TCP/IP、Modbus_TCP/RTU, CC-Link、Profinet、Ethernet/IP、EtherCAT
Power Supply 24V/1.5A


Included:

  • Fairino FR10 Cobot
  • Control Box (AC or DC)
  • Safety Box
  • US Power Cable

Pendant is an optional extra

Flexible Programming

Fairino cobots offer a variety of programming methods for every user: an intuitive drag-and-drop web interface for easy operation with a teach pendant for quick adjustments, and support for advanced programming languages such as Python, C#, C++, ROS and ROS2 for complex applications.

Product Manuals
